Adjustable Scaffolding Steel Prop Construction Shoring Support Post System
Product Overview
The Adjustable Scaffolding Steel Prop is a high-strength vertical support system designed for construction shoring. Also known as acrow props, these components support formwork for concrete slabs, beams, and columns. With flexible length adjustment, they ensure precise height control and structural stability on-site.
Key Characteristics
Our steel props feature a modular design with an inner tube, outer tube, prop nut, and G-pin. They are characterized by high load-bearing capacity and easy handling. The telescopic adjustment fits various floor heights, making it a versatile tool for any project.
Manufacturing Technology

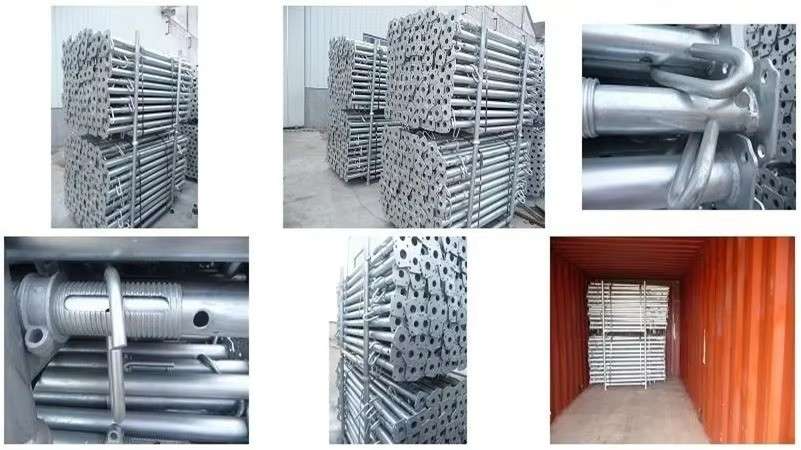

We utilize induction welding for seamless joints. Surface treatments include hot-dip galvanization or powder coating, providing excellent resistance to corrosion and mechanical wear, extending service life in harsh environments.
Operating Principle
The operation relies on screw-thread adjustment. By rotating the prop nut along the threaded sleeve, the inner tube extends to the required height. The G-pin locks the system, transferring the vertical load to the base plate.
Applications
- Supporting slab formwork for buildings
- Shoring for bridge and tunnel projects
- Reinforcement for renovation and structural repairs
- Adjustable support for horizontal beams
Technical Parameters
| Prop Type |
Inner Tube (mm) |
Outer Tube (mm) |
Length Range (m) |
Thickness (mm) |
| Spanish Type |
40 |
48 |
1.6-2.9 / 2.0-3.6 |
1.5-2.0 |
| Italian Type |
48 |
56 |
2.0-3.6 / 2.2-4.0 |
1.6-2.5 |
| Middle East |
48 |
60 |
2.0-3.5 / 2.5-4.5 |
1.8-3.0 |
| Heavy Duty |
60 |
76 |
3.0-5.0 / 3.5-6.0 |
2.5-4.0 |
Key Advantages
- Safety: Tested to meet international load standards
- Efficiency: Rapid installation and dismantling saves labor costs
- Cost-Effective: Reusable components with low maintenance

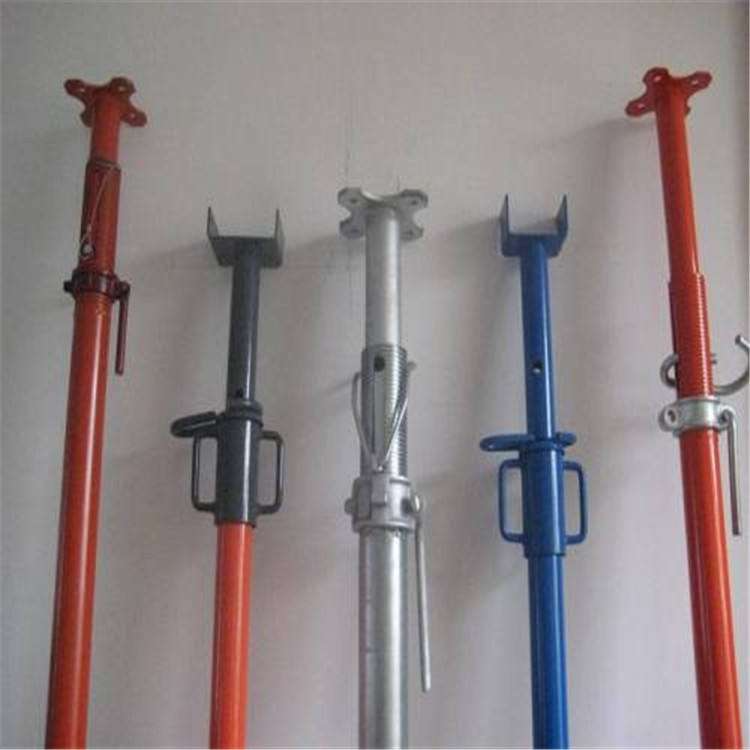

- Customization: Head types like U-head and flower-head are available
Customer Support
We provide technical support, site consultation, and custom design. Our logistics team ensures timely global shipping with 24/7 customer responsiveness.
Frequently Asked Questions
Q: What is the load capacity?
A: 15kN to 45kN depending on height.
Q: Are custom colors available?
A: Yes, multiple powder coating options.
Q: What quality documentation is provided?
A: Mill test certificates accompany every order.
Production Process
Our process involves precision pipe cutting, robotic welding, and finish treatment before being bundled for shipment.
Operation Method
Place the base plate, extend the inner tube, insert the G-pin, and rotate the nut to secure against formwork.
Safety Precautions
Never exceed rated load capacity. Ensure props are vertical. Regularly inspect threads and pins for wear.
Why Choose Our Products
With decades of scaffolding expertise, we are a trusted partner for global contractors. Our automated production ensures precision and safety for every project.
